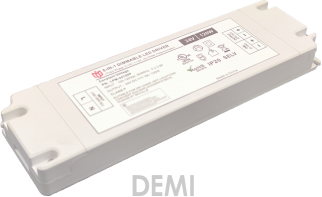

80W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-12080P,LPM-24080P{Plastic shell}

LPM-P SERIES l 80WConstant Voltage Dimmable LED Driver5-IN-1 Dimming Triac/0-...

Product Detail

LPM-P SERIES l 80W

Constant Voltage Dimmable LED Driver

5-IN-1 Dimming Triac/0-10V/1-10V/10V PWM/Potentiometer

Features

• 5-way universal dimming

• Smooth flicker-free dimming, down to 0.1%

• Dimming range: 0.1-100%, flicker-free

• PWM Output: 4000Hz constant frequency

• Short-circuit, over-temperature, over-load protection

• Super low loading request, works perfect at 10-100% load

• Ultra thin plastic housing for dry and damp location, IP20

• Build inactive PFC, typical power factor >0.65, THD<10%@120V Max. Load.

• Dimming curve can be customized

• Meets Title 24/JA8 requirements

• 5-year warranty


Model Number		LPM-12080P	LPM-24080P
Output	Rated Power	80W
	Rated Voltage	DC12V	DC24V
	Rated Current	6.66A	3.33A
	Voltage Tolerance	±0.5V
	Voltage Regulation	±0.5%
	Load Regulation	±1%
Input	Voltage Range	110-277V
	Frequency Range	47-63Hz
	Efficiency (Typ.)	87%@120VAC
	THD	THD<10% (@100% load)
	Power Factor (Typ.)	0.99@ 120VAC (full loading)
	AC Current (Typ.)	0.97A
	Inrush Current (Typ.)	<18A
	Leakage Current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed.
	Over Load	≤120% Hiccup mode,recovers automatically after fault condition is removed.
	Over Temperature	100℃±10℃ shut down o/p voltage, automatically recover after cooling.

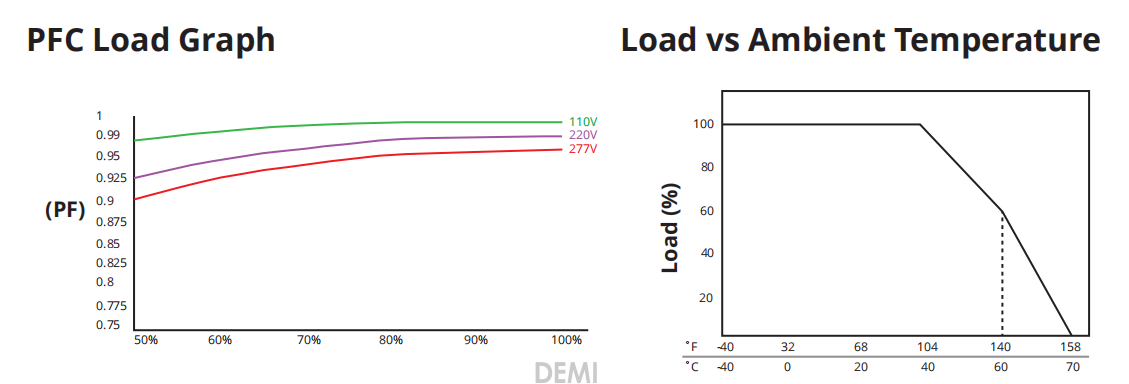

Environment	Working Temp.	Tcase=-40℃ ~ +60℃ (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
	Working Humidity	20 ~ 95% RH non-condensing
	Storage Temp. Humidity	-40 ~ +90, 10 ~ 95% RH
	Temp. Coefficient	±0.03%/℃ (0～50℃)
	Vibration	10-500Hz,2G 12 minutes/cycle,Period 72 minutes each along X,Y,Z axes
Safety & EMC	Safety Standards	UL8750
	Withstand Voltage	I/P-shell:1.88KVAC
	Isolation Resistance	I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
