96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}

Short Description:

LPM-P SERIES l 96WConstant Voltage Dimmable LED Driver5-IN-1 Dimming Triac/0-...


  • Input Voltage: 110-277V
  • Power Factor: >0.95
  • Dimming: Triac/0-10V/1-10V/10V PWM/Poteniometer
  • Output Voltage: 24V
  • Output Current: 4A
  • Output Type: Constant Voltage
  • Efficiency: 89%

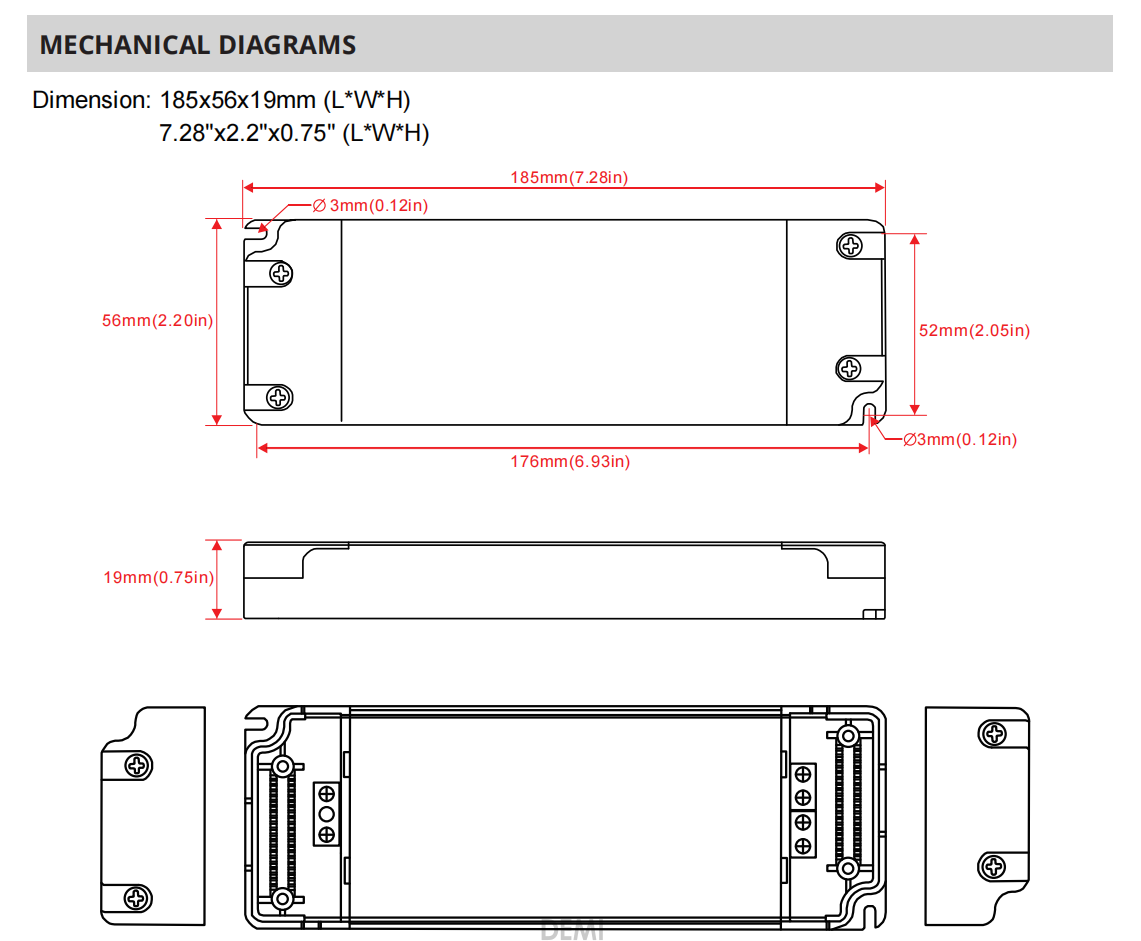

  • Size: 7.28" L x 2.20" W x 0.75"H
  • Certificate and Reports: ETL,cETL,FCC,IP20
  • Protection Function: Short-circuit, over-temperature, over-load protection
  • Product number: LPM-24096P
  • Warranty: 5 Years
  • Environment: DRY, DRMP
Download as DataSheet

Product Detail

Product Tags

LPM-P SERIES l 96W

Constant Voltage Dimmable LED Driver

5-IN-1 Dimming   96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic1)  Triac/0-10V/1-10V/10V PWM/Potentiometer

Features


LPM-P SERIES l 96W

Constant Voltage Dimmable LED Driver

5-IN-1 Dimming   96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic1)  Triac/0-10V/1-10V/10V PWM/Potentiometer

Features

96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic3)• 5-way universal dimming

• Smooth flicker-free dimming, down to 0.1%

• Dimming range: 0.1-100%, flicker-free

• PWM Output: 4000Hz constant frequency

• Short-circuit, over-temperature, over-load protection

• Super low loading request, works perfect at 10-100% load

• Ultra thin plastic housing for dry and damp location, IP20

• Build inactive PFC, typical power factor >0.65, THD<10%@120V Max. Load.

• Dimming curve can be customized

• Meets Title 24/JA8 requirements

96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic4) 96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic5) 96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic6) 96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic7) 96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic8) 96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic9) 96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic10) 96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic11) 96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic12)• 5-year warranty

• 5-way universal dimming

• Smooth flicker-free dimming, down to 0.1%

• Dimming range: 0.1-100%, flicker-free

• PWM Output: 4000Hz constant frequency

• Short-circuit, over-temperature, over-load protection

• Super low loading request, works perfect at 10-100% load

• Ultra thin plastic housing for dry and damp location, IP20

• Build inactive PFC, typical power factor >0.65, THD<10%@120V Max. Load.

• Dimming curve can be customized

• Meets Title 24/JA8 requirements

96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic9) 96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic10) 96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic11) 96W watt compact 5 IN 1 LED Dimmable Driver without junction box constant voltage LPM-24096A{Plastic shell}(pic12)• 5-year warranty


Model Number

LPM-24096P







Output

Rated Power

96W

Rated Voltage

DC24V

Rated Current

4A

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±1%









Input

Voltage Range

110-277V

Frequency Range

47-63Hz

Efficiency (Typ.)

89%@120VAC

THD

THD<10% (@100% load)

Power Factor (Typ.)

0.99@ 120VAC (full loading)

AC Current (Typ.)

1.15A

Inrush Current (Typ.)

<20A

Leakage Current

<0.5mA



Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

Over Load

≤120% Hiccup mode,recovers automatically after fault condition is removed.

Over Temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.





Environment

Working Temp.

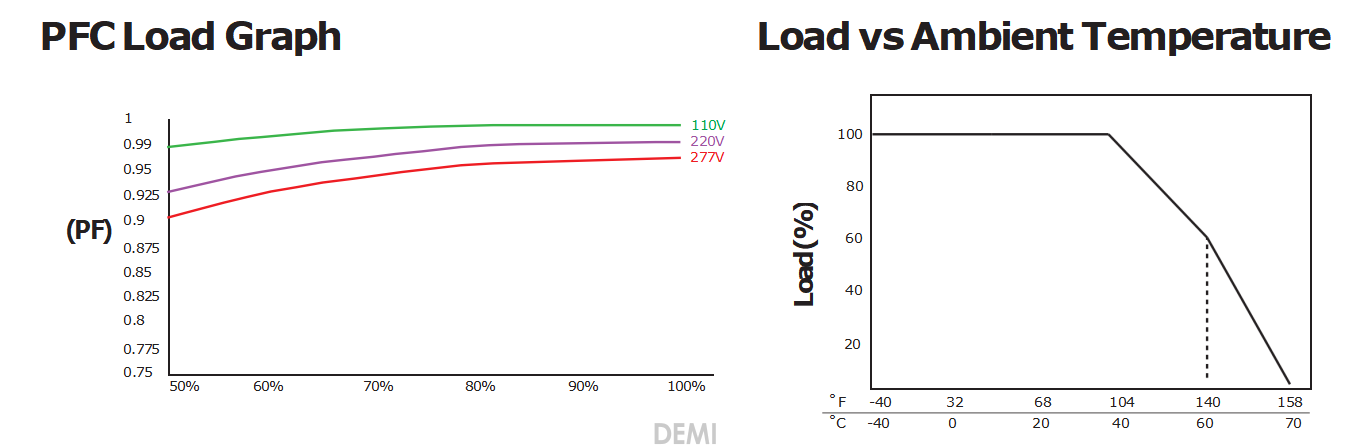

Tcase=-40℃ ~ +60℃ (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)

Working Humidity

20 ~ 95% RH non-condensing

Storage Temp. Humidity

-40 ~ +90, 10 ~ 95% RH

Temp. Coefficient

±0.03%/℃ (0～50℃)

Vibration

10-500Hz,2G 12 minutes/cycle,Period 72 minutes each along X,Y,Z axes



Safety & EMC

Safety Standards

UL8750

Withstand Voltage

I/P-shell:1.88KVAC

Isolation Resistance

I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
