120W(60W×2) Watt 5 IN 1 LED DIMMABLE DRIVER with junction box constant voltage Class2 multi-channles PMA-H12120J,PMA-H24120J

120 Watt 5 IN 1 LED DIMMABLE DRIVER with junction box Constant Voltage PMA-H12120J...

Product Detail

PMA-J SERIES l 120W Multiple Channel

Constant Voltage Dimmable LED Driver

5-IN-1 Dimming I Triac/0-10V/1-10V/10V PWM/Poteniometer dimming Key Features

• 5-way universal dimming

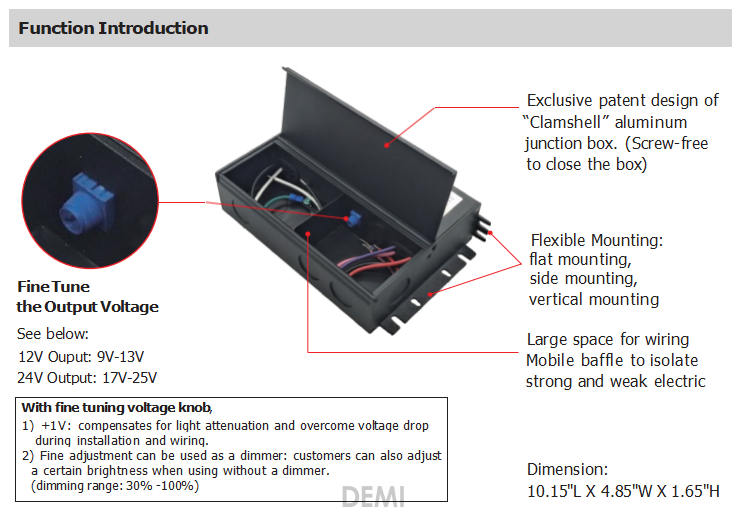

• Constant Voltage type, fine tune of output voltage

• PF>0.95, dimming range: 0.1-100%, flicker-free

• Output type: PWM, 4000Hz constant frequency

(Different frequencies can be customized: 250-20000Hz)

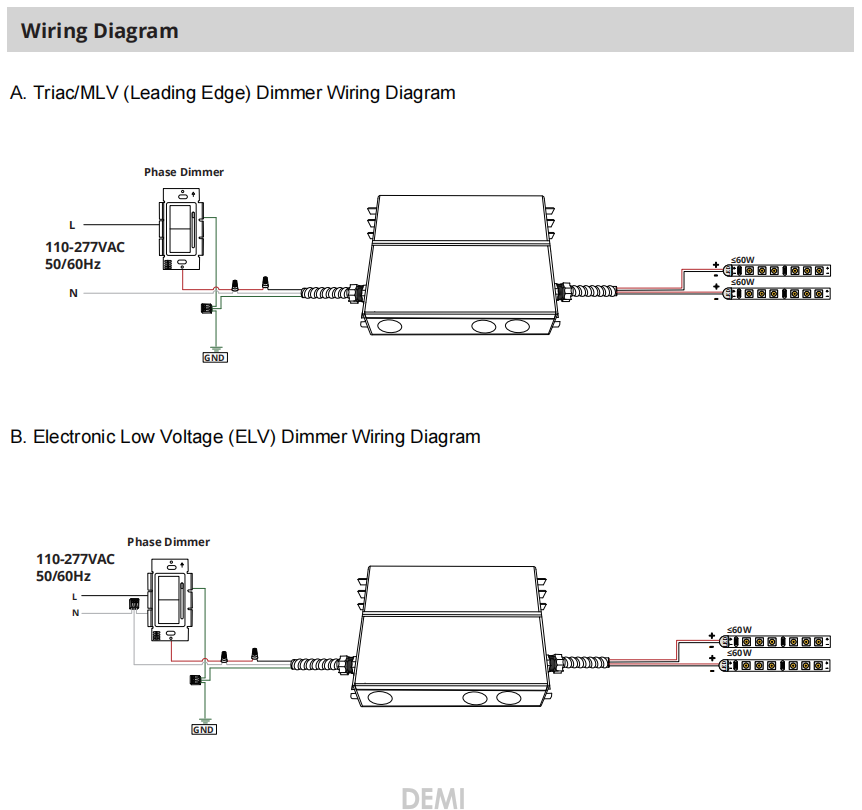

• Triac Dim Mode: forward phase/ reverse phase/ MLV/ ELV

• Short-circuit, over-temperature, over-load protection

• Installation: Flat mounting, side mounting, vertical mounting

• High quality aluminum housing for excellent heat dissipation

• Suitable for dry, damp, wet location, IP65

• Dimming curve can be customized

• Meets Title 24/JA8 requirements

• 5-year Warranty

Model Number		PMA-H12120J	PMA-H24120J
Output	Rated Power	120W (Multi 60W*2)
	Rated Voltage	DC12V	DC24V
	Rated Current	2CH*5A	2CH*2.5A
	Voltage Tolerance	±0.5V
	Voltage Regulation	±0.5%
	Load Regulation	±1%
Input	Voltage Range	110-277V
	Frequency Range	47-63Hz
	Efficiency (Typ.)	90%@120VAC 91%@277VAC
	THD	THD<15% (@100% load)
	Power Factor (Typ.)	0.99@120VAC 0.98@277VAC
	AC Current (Typ.)	1.88A
	Inrush Current (Typ.)	28A
	Leakage Current	<0.5mA
Protection	Short Circuit	shut down o/p voltage, re-power on to recover after fault condition is removed
	Over Load	≤110% Hiccup mode, recovers automatically after fault condition is removed.
	Over Temperature	100℃±10℃ Intelligently reduce the output voltage and current.auto-recovery after over load is removed.

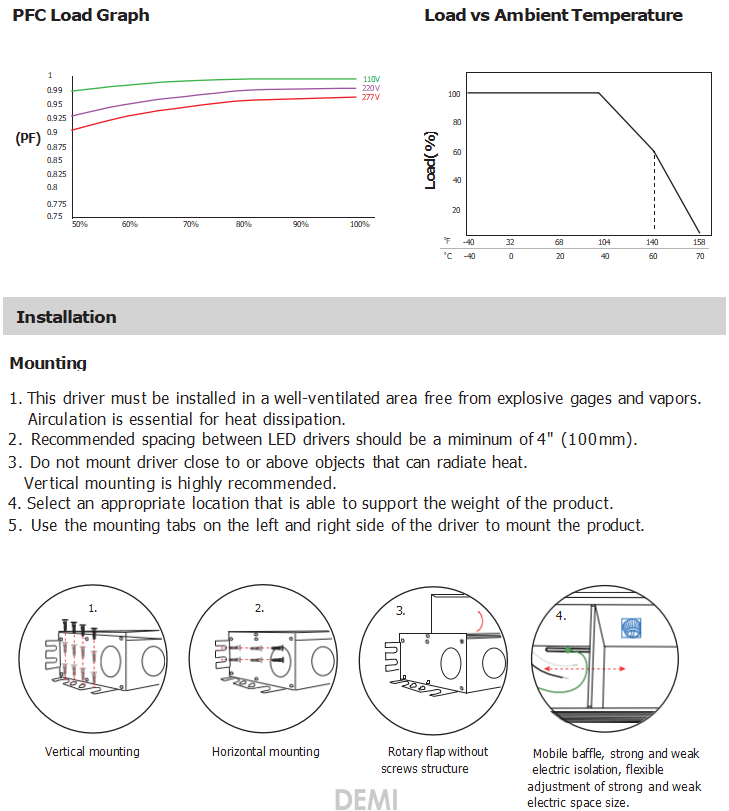

Environment	Working Temp.	Tcase=-40~+140º F (-40~+60°C) (Please refer to "OUTPUTLOAD vs TEMPERATURE" section)
	Working Humidity	20 ~ 95% RH non-condensing
	Storage Temp. Humidity	-40~+194º F (-40~+90°C), 10~95% RH
	Temp. Coefficient	±0.03%/℃ (0～50℃)
	Vibration	10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety & EMC	Safety Standards	UL8750
	Withstand Voltage	I/P-O/P:1.88KVAC
	Isolation Resistance	I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
	EMC Emission	Compliance to FCC part 15 Subpart B
Other	Net Weight	1.3kg
