Output

Rated Power

30W

Rated Voltage

DC12V

DC24V

DC48V

Rated Current

2.5A

1.25A

0.63A

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±1%

Input

Voltage Range

110-277V

Frequency Range

47-63Hz

Efficiency (Typ.)

85%@120VAC 86%@277VAC

THD

THD<15% (@100% load)

Power Factor (Typ.)

0.99@120VAC 0.98@277VAC

AC Current (Typ.)

0.35A

Inrush Current (Typ.)

18A

Leakage Current

<0.5mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.

Over Load

Intelligently reduce the output voltage, auto-recovery or re-power on to recovery.

Over Temperature

100°C±10°C shut down o/p voltage, automatically recover after cooling.

Environment

Working Temp.

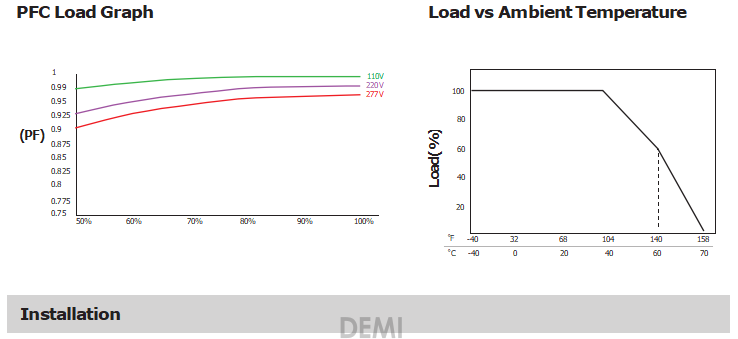

Tcase=-40~+140º F (-40~+60°C) (Please refer to "OUTPUTLOAD vs TEMPERATURE" section)

Working Humidity

20 ~ 95% RH non-condensing

Storage Temp. Humidity

-40~+194ºF (-40~+90°C), 10~95% RH

Temp. Coefficient

±0.03%/℃ (0～50℃)

Vibration

10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety & EMC

Safety Standards

UL8750

Withstand Voltage

I/P-O/P:1.88KVAC

Isolation Resistance

I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH

EMC Emission

Compliance to FCC part 15  Subpart B

Other

Net Weight

0.75kg
