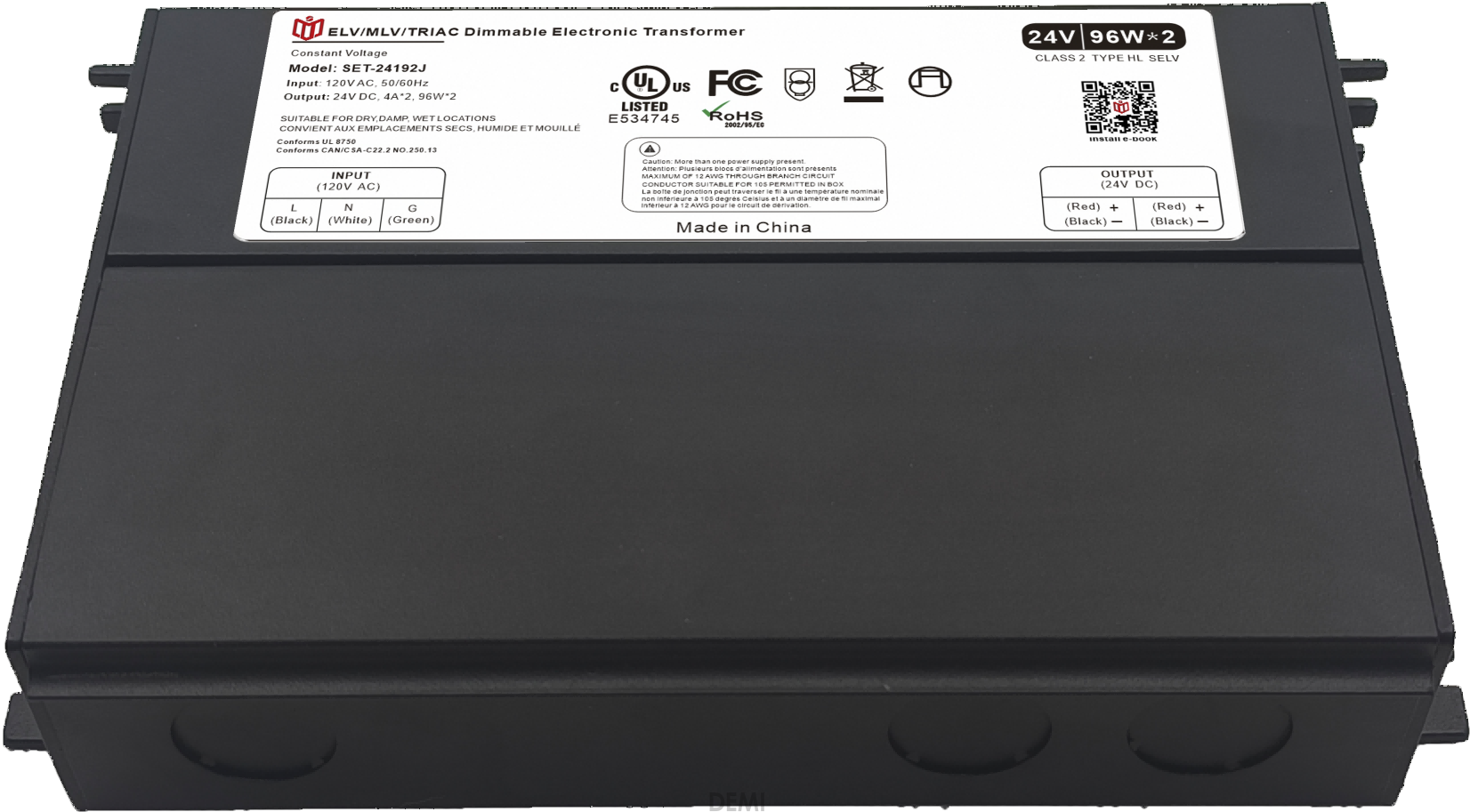

192 Watt TRIAC/ELV/MLV LED Electronic Transformer with junction box Constant Voltage Class2 multi channel SET-24192J
Product introduction
•Dimming: Triac/ ELV/ MLV •Dimming 0-100%
•UL Pending, Class 2, Type HL •Damp,dry,wet location
•120Vac input •3 years warranty
•Build in active PFC, typical power factor=0.98
•THD<20%@120V Max. load
•Constant voltage type
•Small size: 7.40x4.74x1.65 inch (L*W*H)
•Super low loading request, works perfect at 20-100% load.
•Short-circuit, over-load protection.
•aluminum housing, for dry,damp,wet.•Compatible with popular dimmers in the market,Lutron-CL, Diva series and so on.
Specification
Model Number | SET-24192J | ||||
Output Type | |||||
Reted Power | 96W*2 | ||||
Reted Voltage | 24V | ||||
Reted Current | Multi 4A*2 | ||||
Voltage Tolerance | ±0.5V | ||||
Voltage Regulation | ±0.5% | ||||
Load Regulation | ±1% | ||||
Input Type | |||||
Voltage Range | 120V | ||||
Frequency Range | 47-63HZ | ||||
Efficiency（Typ.） | 88%@120VAC | ||||
Total Harmonic Distortion | THD< 20%(@100% load) | ||||
Power Factor(typ.) | 0.98@120VAC | ||||
AC Current（Typ.） | 1.84A | ||||
Inrush Current(Typ.) | - | ||||
Leakage Current | <0.5mA/ 120VAC | ||||
PROTECTION | |||||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||||
Over Load | Reduce the output voltage and output power, auto-recovery or re-power on to recovery | ||||
ENVIRONMENT | |||||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||||
Working humidity | 20 ~ 95% RH non-condensing | ||||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||||
Temp .coefficient | ±0.03%/℃（0～50℃） | ||||
Vibration | 10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||||
SAFETY & EMC | |||||
Safety standards | UL8750, Class 2 | ||||
Safety standards | I/P-O/P:1.88KVAC | ||||
OTHERS | |||||
Dimension | 7.40x4.74x1.65 inch (L*W*H) | ||||
Packing | 0.8KG | ||||

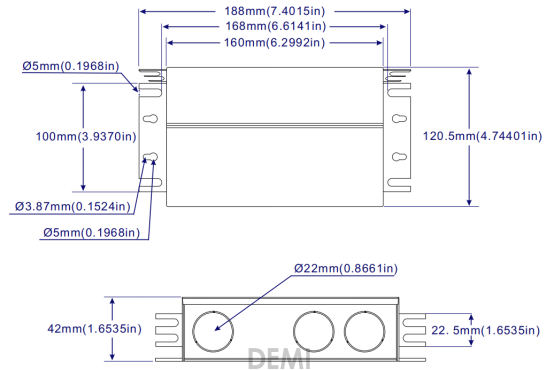

Mechanical Diagram
Wire Specification
SET-J | Input | output | ||||
Power | Function | Color | Spec. | Function | Color | Spec. |
192W | AC L | Black | 18AWG | DC + | Red | 18AWG |
AC N | White | 18AWG | DC - | Blue | 18AWG | |
Ground | Green | 18AWG | / | / | / | |

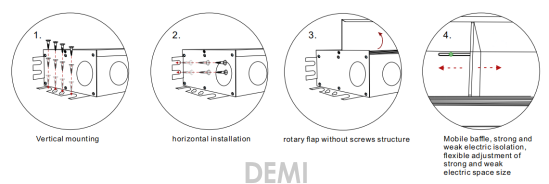

Mounting
1.This driver must be installed in a well-ventilated area free from explosive gases and
vapors. Air circulation is essential for heat dissipation.
2.Recommended spacing between LED drivers should be a minimum of 4” (10cm).
3.Do not mount driver close to or above objects that can radiate heat. Vertical
mounting is highly recommended.
4.Select an appropriate location that is able to support the weight of the product.
5.Use the mounting tabs on the left and right side of the driver to mount the product.

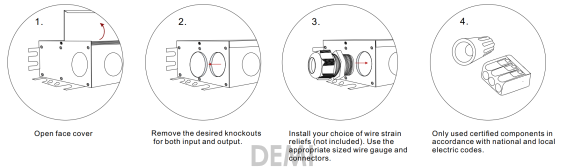

Connection Preparation

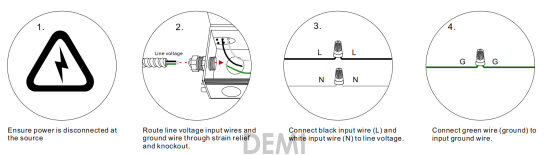

Input Connections & Grounding

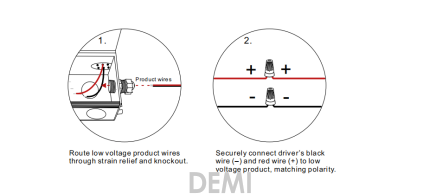

Output Connections
Wiring Diagram

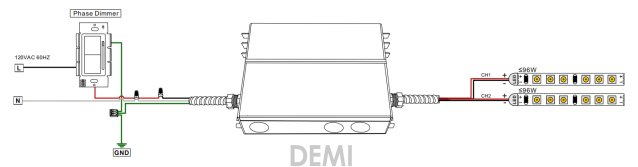

Using Triac MLV wiring diagram

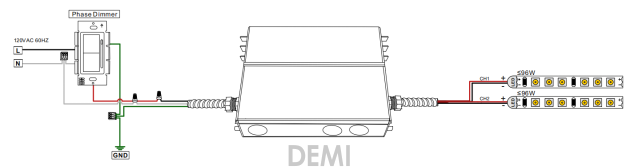

Using Triac ELV wiring diagram

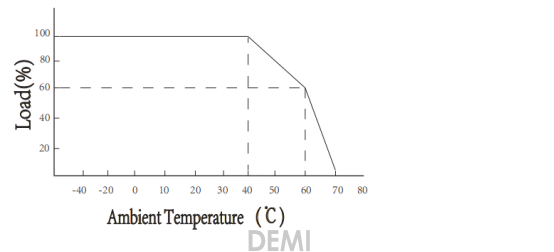

Load vs Ambient Temperature
