96Watt TRIAC/ELV/MLV LED Electronic Transformer with junction box Constant Voltage SET-24096B
Product introduction
Feature
•Dimming: Triac/ ELV/ MLV •Dimming 0-100%
•UL, Class 2, Type HL •Damp and dry location
•120Vac input •3 years warranty
•Build in active PFC, typical power factor=0.98
•THD<20%@120V Max. load
•Constant voltage type
•Small size: 4.17x3.50x1.31 inch (L*W*H)
•Super low loading request, works perfect at 20-100% load.
•Short-circuit, over-load protection.
•location: for dry,damp.•Compatible with popular dimmers in the market,Lutron-CL, Diva series and so on.
Specification
Model Number | SET-24096B | ||||
Output Type | |||||
Reted Power | 96W | ||||
Reted Voltage | 24V | ||||
Reted Current | 4A | ||||
Voltage Tolerance | ±0.5V | ||||
Voltage Regulation | ±0.5% | ||||
Load Regulation | ±1% | ||||
Input Type | |||||
Voltage Range | 120V | ||||
Frequency Range | 47-63HZ | ||||
Efficiency（Typ.） | 86%@120VAC | ||||
Total Harmonic Distortion | THD< 20%(@100% load) | ||||
Power Factor(typ.) | 0.98@120VAC | ||||
AC Current（Typ.） | 0.92A | ||||
Inrush Current(Typ.) | - | ||||
Leakage Current | <0.5mA/ 120VAC | ||||
PROTECTION | |||||
Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | ||||
Over Load | Reduce the output voltage and output power, auto-recovery or re-power on to recovery | ||||
ENVIRONMENT | |||||
Working Temp. | Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section) | ||||
Working humidity | 20 ~ 95% RH non-condensing | ||||
Storage temp., Humidity | -40 ~ +90, 10 ~ 95% RH | ||||
Temp .coefficient | ±0.03%/℃（0～50℃） | ||||
Vibration | 10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||||
SAFETY & EMC | |||||
Safety standards | UL8750, Class 2 | ||||
Safety standards | I/P-O/P:1.88KVAC | ||||
OTHERS | |||||
Dimension | 4.17x3.50x1.31 inch (L*W*H) | ||||
Packing | - | ||||

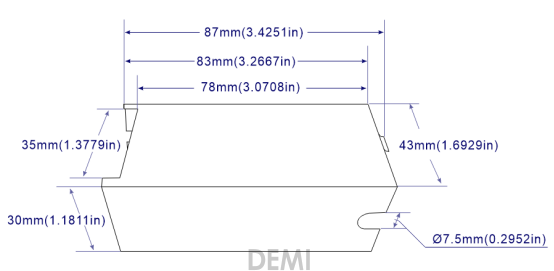

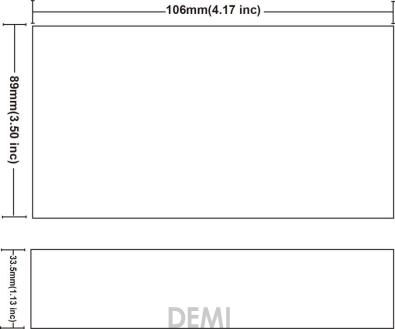

Mechanical Diagram
Wiring Diagram

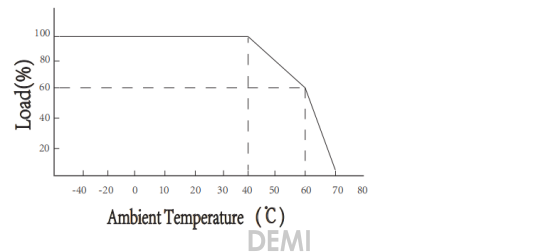

Load vs Ambient Temperature
