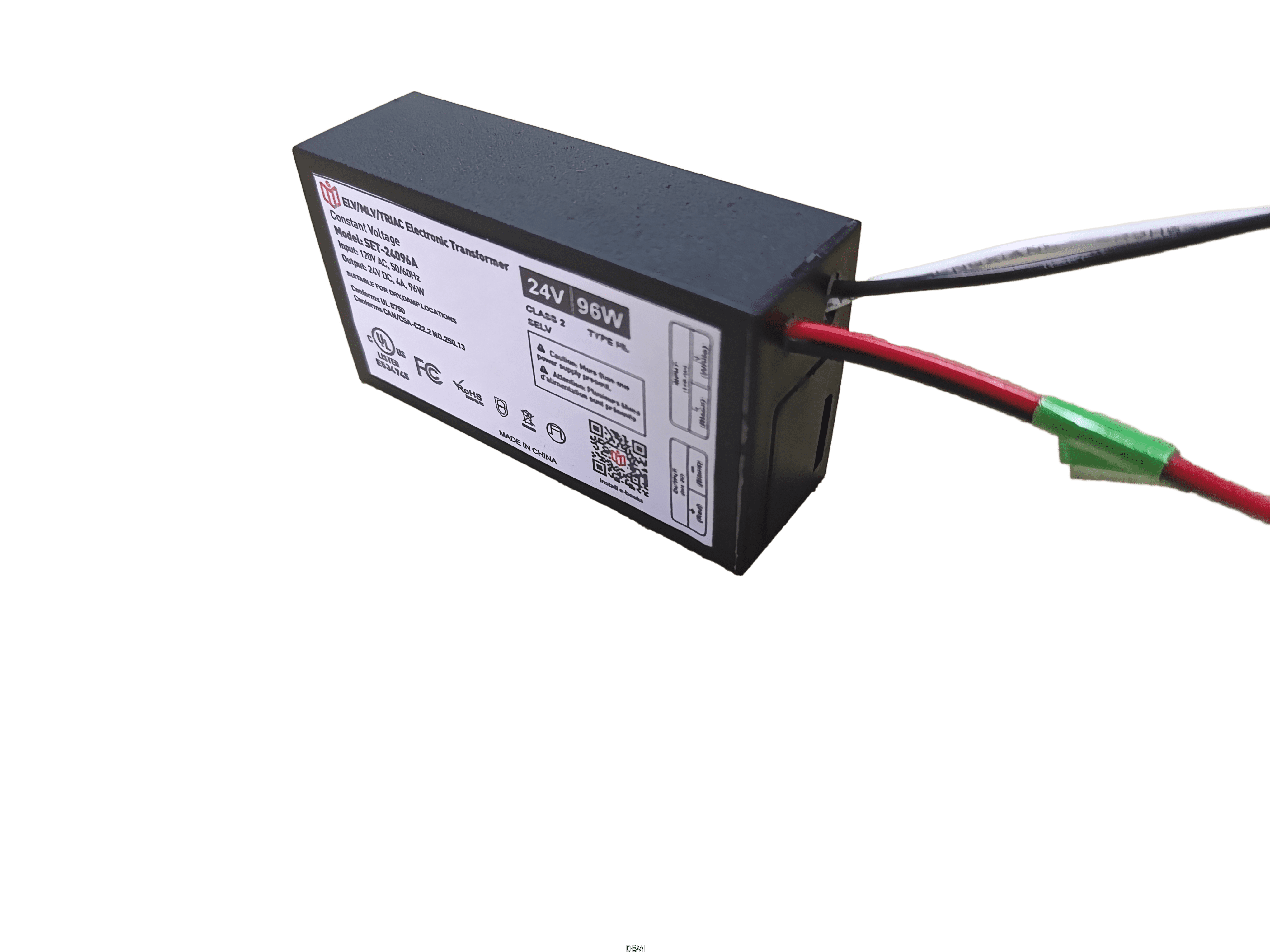

96Watt TRIAC/ELV/MLV Small LED Electronic Transformer Constant Voltage SET-24096-A

96Watt TRIAC/ELV/MLV LED Electronic Transformer Constant Voltage...

Input Voltage: 110-130V
Power Factor: 0.95
Dimming: Phase Dimmable with Leading (Forward) or Trailing (Reverse) Edge Dimmer
Output Voltage: 24V
Output Current: 4A
Output Type: Constant Voltage
Efficiency: 86%
Size: 2.83" L x 1.53" W x 0.89"H
Certificate and Reports: UL,cUL
Protection Function: Short-circuit, over-load protection
Product number: SET-24096A
Warranty: 3 Years
Environment: DRY, DRMP, WET LOCATION

Product Detail

Product introduction

Feature

•Dimming: Triac/ ELV/ MLV

•Dimming 0-100%

•UL, Class 2, Type HL

•Damp and dry location

•120Vac input

•3 years warranty

•Build in active PFC, typical power factor=0.98

•THD<20%@120V Max. load •Constant voltage type

•Small size: 2.83x1.53x0.89 inch (L*W*H)

•Super low loading request, works perfect at 20-100% load

•Short-circuit, over-load protection.

•aluminum housing, for dry,damp.

•Compatible with popular dimmers in the market,Lutron-CL, Diva series and so on.

Specification

Model Number	SET-24096-A
Output Type
Reted Power		96W
Reted Voltage		24V
Reted Current		4A
Voltage Tolerance		±0.5V
Voltage Regulation		±0.5%
Load Regulation		±1%
Input Type
Voltage Range		120V
Frequency Range		47-63HZ
Efficiency（Typ.）		88%@120VAC
Total Harmonic Distortion		THD< 20%(@100% load)
Power Factor(typ.)		0.98@120VAC
AC Current（Typ.）		0.84A
Inrush Current(Typ.)		-
Leakage Current		<0.5mA/ 120VAC
PROTECTION
Short Circuit			Hiccup mode, recovers automatically after fault condition is removed.
Over Load			Reduce the output voltage and output power, auto-recovery or re-power on to recovery
ENVIRONMENT

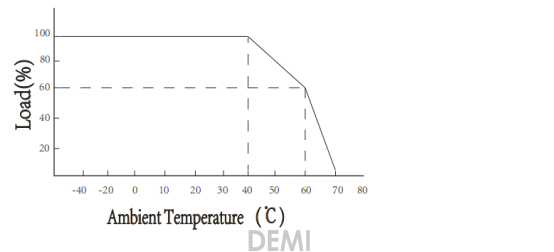

Working Temp.				Tcase=-40 ~ +60 (Please refer to“OUTPUTLOAD vs TEMPERATURE”section)
Working humidity				20 ~ 95% RH non-condensing
Storage temp., Humidity				-40 ~ +90, 10 ~ 95% RH
Temp .coefficient				±0.03%/℃（0～50℃）
Vibration				10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
SAFETY & EMC
Safety standards					UL8750, Class 2
Safety standards					I/P-O/P:1.88KVAC
OTHERS

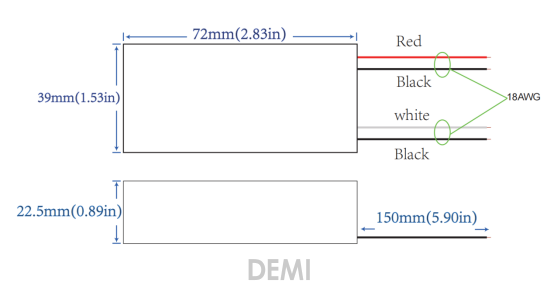

Dimension					2.83x1.53x0.89 inch (LWH)
Packing					-
