In real life, there are too many lighting products, various and individual, which are dazzling and overwhelming; There are lighting products for home decoration, commercial lighting products, and industrial lighting products, all of which have their own outstanding features and play important roles in different scenarios, adding color to people's dull lives!

The colorful appearance on the surface is the hard work and dedication of countless professional lighting professionals! Digging into design, experiencing various problems during installation and debugging, and each problem getting newer, there are always different types of problems that arise.

The HZA series products from Demi Technology can give us more initiative and less surprise in product application! Its HZA series products have 10 frequency options. In practical product applications, there are many categories of LED lighting design. When matching different LED lighting fixtures with dimming driving power supplies, there is a need for output frequency size. Different output frequencies can effectively extend the life of LED lights and achieve excellent dimming effects according to actual situations!

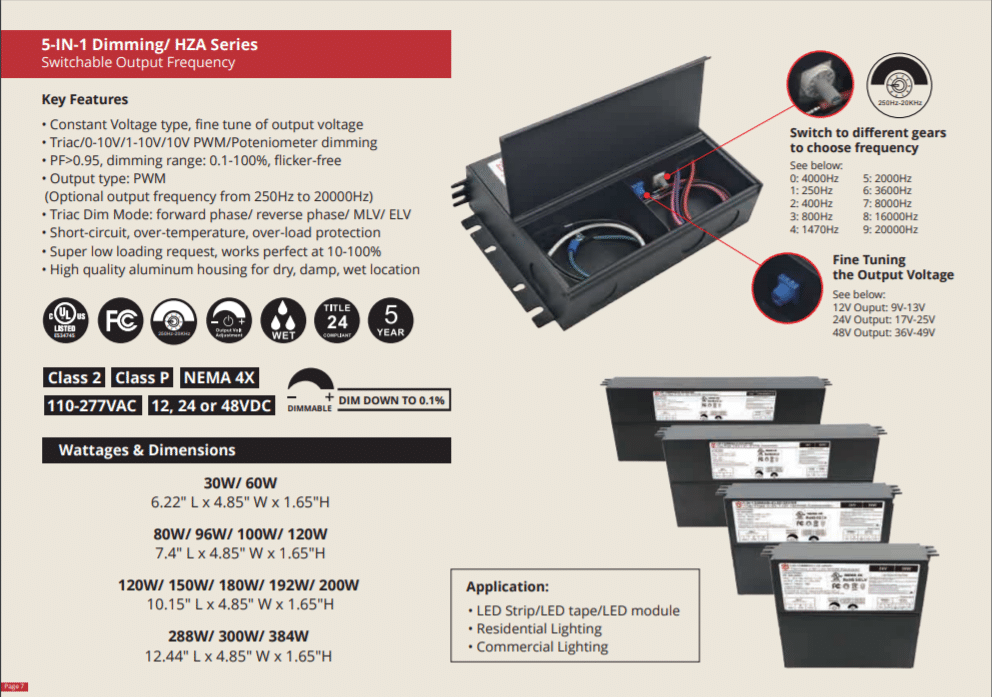

The detailed explanation of Demi Technology's HZA series products is as follow:

Highlight 2:

Highlight 3:

Equipped with a voltage adjustment function knob, where+1V is used for light attenuation compensation (to solve the problem of light attenuation in lamps, increasing the voltage can restore the best brightness and continue to use the lamps), while also solving the problem of voltage drop during installation and wiring. Fine tuning can be used as a dimmer: customers can also adjust a certain brightness when not using the dimmer (such as in advertising lightboxes and other scenes, customers generally do not need to frequently dim, and will not touch it after setting the desired brightness)

Highlight 4:

The product comes with a 9-level switchable output frequency knob; 250HZ-20KHZ is optional to meet the needs of lighting fixtures and customers with special frequency requirements (some lighting fixtures cannot use high-frequency outputs, such as built-in controllers or conversion circuits that cannot withstand high-frequency inputs, which is also the main reason why some customers specify the need for low-frequency outputs. For flicker requirements: flicker exemption is achieved when the frequency is ≥ 3125Hz, but within 16000Hz, the higher the frequency, the greater the resonance noise (frequency resonance noise is generally reflected in the output terminal connection or output line, such as guide rails of rail lights, magnetic suction lights, etc.), but when the frequency is greater than 16000Hz, the resonance noise is difficult for the human body to detect, and above 20000Hz is the best. Therefore, in recent years, the requirements for power output frequency have gradually increased (if higher frequency is needed). The output frequency can be customized

Small size, light weight, saving transportation costs, easy installation

The shell material is aluminum, which truly meets NEMA 4X standards and has good heat dissipation. At present, many integrated chassis materials on the market are made of iron, which cannot truly pass NEMA 4X, and their heat dissipation is much worse than aluminum. The thermal conductivity of iron (solid state) is 60W/mK; The thermal conductivity of aluminum (solid state) is 237W/mK

Having multiple installation feet, it can be installed side, flat, or vertical, meeting the installation needs of customers in different scenarios

The flip cover does not require screws, making it time-saving, labor-saving, economical, and more convenient for terminal applications when wiring.

Wide range of dimming efficiency: 0.1~100% (depth), smooth dimming throughout the entire process, no noise, no flicker.

Strong compatibility! Almost compatible with popular front-end and back-end thyristor dimmers and systems, 0-10V dimmers and systems on the market.

High efficiency: Under the same function and power, the efficiency of Demi products is 3-5 points higher than that of products of the same power type, effectively reducing temperature rise and extending product service life.

1. LED soft light strip/hard light strip, 2. LED advertising lighting module and wall wash light, 3. Cabinet light, display cabinet light, 4.12V/24V lamp cup, 5.12V/24V/48V buried light, 6. Magnetic guide rail light, 7. T8/T5 lamp tube with constant voltage circuit.




1. Used on billboards, paired with LED advertising lighting modules. 2. Used for high-end hotels and villas, paired with LED soft light strips/hard light strips. 3. Used on cabinets and paired with cabinet lights. 4. Used in entertainment venues or commercial shopping malls, paired with 12V/24V/48V buried lights. 5. Used for commercial and office environments, equipped with constant voltage input spotlights, lamp cups, magnetic rail lights, etc. 6. Used for lighting large production workshops and large parking lots (using constant voltage lamps or backlight strips)
